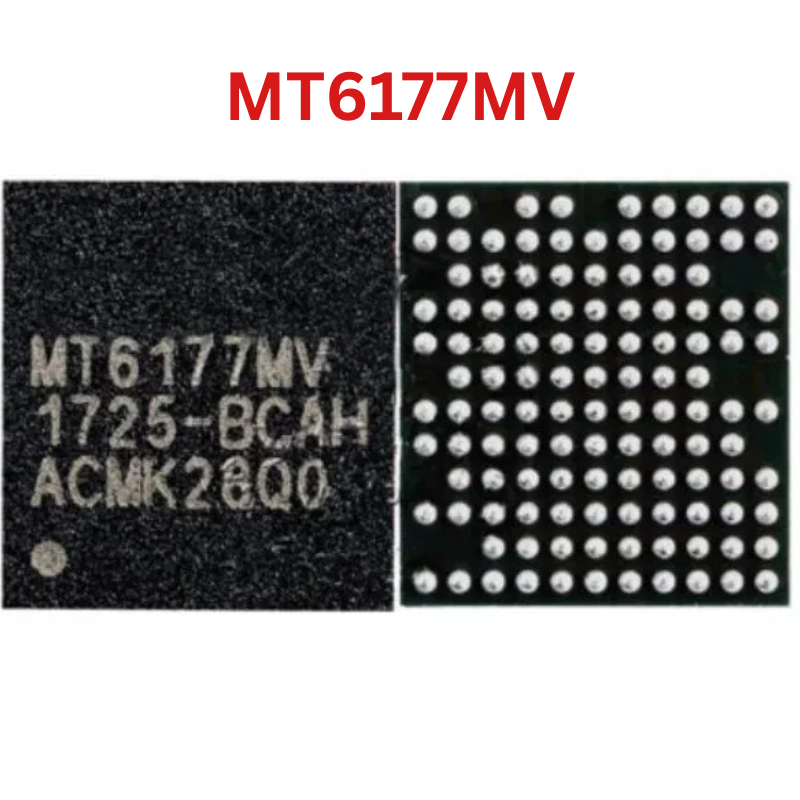

MT6177MV IC

Product Details
Product Details:

- Part Number: MT6177MV (Marking: MT6177MV)

- Sibling / Suffix Variant: MT6177W

- Manufacturer: MediaTek Inc. (MTK)

- Function: Multi-Mode Multi-Band Cellular RF Transceiver / Baseband Intermediate Frequency (IF) IC

- Cellular Standards Supported:

* 4G LTE: FDD-LTE & TDD-LTE (Multi-band carrier aggregation support)

* 3G: WCDMA / HSPA+

* 2G: GSM / GPRS / EDGE Quad-band (850 / 900 / 1800 / 1900 MHz)

- Internal Architecture:

* Integrated Direct-Conversion Down-Conversion & Up-Conversion Mixers

* Low-Noise Amplifiers (LNAs) for Multi-Band Receiver Diversity

* Fractional-N RF Synthesizers & Phase-Locked Loop (PLL) Local Oscillators

* Digital IQ Interface connecting directly to the MediaTek Baseband Modem

- Package Type: Fine-Pitch BGA (Ball Grid Array)

- Stencil Compatibility: YCS MTK-05 / Amaoe Universal MTK Network & RF Series Stencil (0.12mm)

- Recommended Solder Paste: 183°C Leaded Solder Paste

Usage:

- Radio Signal Processing: Governs the analog-to-digital conversion and transmission of all mobile cellular network bands between the Baseband CPU and the Power Amplifier (PA).

- Target Devices & Compatible Models:

* Xiaomi / Redmi: Redmi 6, Redmi 6A, Redmi 9A, Redmi 9C, Redmi Note 8 Pro (secondary RF transceiver in select regions)

* Samsung: Galaxy A32 4G (SM-A325F MTK Helio G80), Galaxy A12 (SM-A125F Helio P35)

* Oppo / Realme: Oppo F5, Oppo F7, Oppo F9 / F9 Pro, Oppo F11 / F11 Pro, Oppo A83, Oppo A91, Realme 1, Realme 3, Realme C2

* Vivo: Vivo Y81, Vivo Y83, Vivo Y97, Vivo V11 / V11i, Vivo S1 (Helio P65)

* Tecno / Infinix: Tecno Camon 12, Camon 15, Infinix Note 7, Infinix Hot 9, Hot 10

- Common Fault Symptoms & Motherboard Diagnostics:

* No Service / Emergency Calls Only:

- SIM card is detected, operator name displays or SIM prompt appears, but signal indicator displays an empty circle (⊘) or stays permanently on "Emergency Calls Only".

* Manual Network Search Failure:

- Running a manual operator scan in Settings results in an immediate "Error while searching for networks" prompt, indicating MT6177MV failed to sweep the frequency bands.

* Radio Power Off (*#*#4636#*#* Menu):

- In Android Testing Menu, "Mobile Radio Power" appears toggled OFF and automatically flips back to OFF when turned ON.

* Unknown Baseband Version:

- In "About Phone", the Baseband version is reported as "Unknown", caused by MT6177MV failing its startup handshake or shorted VDD_RF supply rails.

* 2G Works but 4G LTE Fails:

- Phone registers and completes phone calls on 2G mode, but switching preferred network type to 4G LTE causes total signal loss due to defective LTE receiver mixer blocks inside MT6177MV.

* RF Section Heating & Battery Drain:

- The metal shielding can covering MT6177MV gets excessively hot during phone calls or when mobile data is turned on, accompanied by rapid battery drain.
