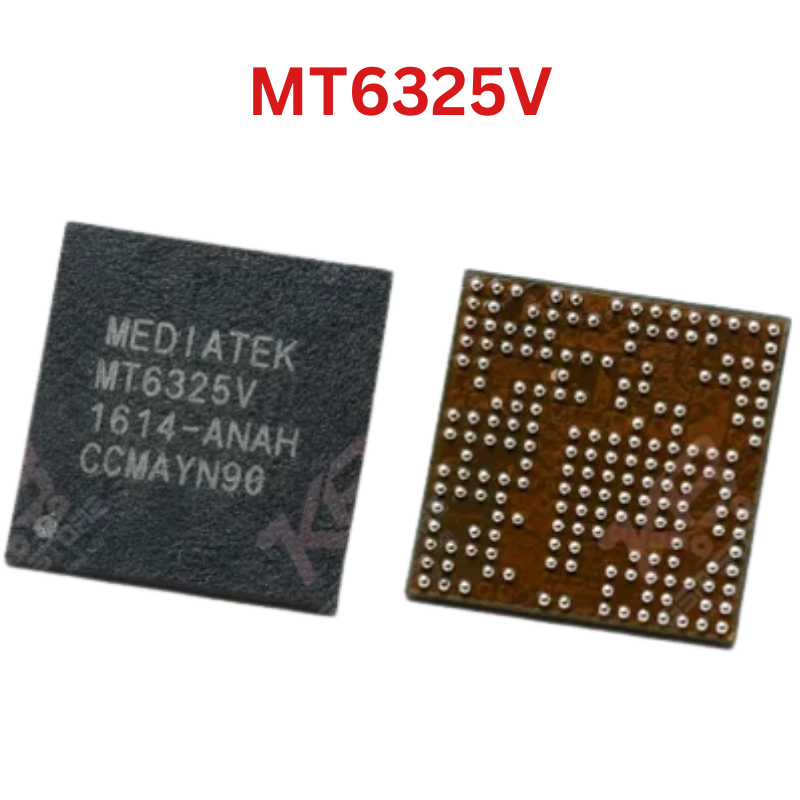

MT6325V IC

Product Details
Product Details:

- Part Number: MT6325V (Marking: MT6325V / MT6325)

- Manufacturer: MediaTek Inc. (MTK)

- Companion SoC Platforms:

* MediaTek MT6752 (64-Bit Octa-Core Cortex-A53)

* MediaTek MT6732 (64-Bit Quad-Core Cortex-A53)

* MediaTek MT6795 (Helio X10 Flagship Octa-Core)

- Function: Primary Master Power Management Integrated Circuit (PMIC)

- Internal Circuit Architecture:

* Multi-Phase Synchronous Step-Down DC-DC Buck Converters:

- VCORE (Dedicated dynamic multi-core CPU voltage lines)

- VGPU (Power delivery for PowerVR / Mali graphics cores)

- VMEM / VDRAM (LPDDR3 Memory supply rails)

- VIO18 / VSYS (Core system logic power)

* Multi-Channel High-PSRR Low-Dropout Regulators (LDOs):

- Regulated supply channels for eMMC flash memory, camera sensors (AVDD, DVDD), baseband analog blocks, and sensors

* System Control & Supervision:

- Central Power-On Sequencing and Hardware Reset Generator

- High-temperature Thermal Shutdown Protection

- 32.768 kHz RTC Sleep Clock Driver

- Package Type: BGA (Ball Grid Array)

- Stencil Compatibility: Amaoe MT2 (MTK Power Series BGA Stencil for MT6325 / MT6328 / MT6329) (0.12mm)

- Recommended Solder Paste: 183°C Leaded Solder Paste

Usage:

- Circuit Function:

* Manages battery power (VBAT) conversion to all critical internal voltage rails required for phone bootup, processing, and peripheral operations.

- Compatible Smartphone Brands & Classic Models:

* Lenovo: Lenovo K3 Note (K50-T5 / K50-t3s), Lenovo A7000

* Xiaomi: Redmi Note 2 (Hermes), Redmi Note 3 (Hennessy - Helio X10 MTK variant)

* Sony Xperia: Sony Xperia C4 (E5303 / E5333), Xperia C5 Ultra (E5506 / E5533), Xperia M5 (E5603 / E5663)

* Meizu: Meizu MX5, Meizu M2 Note (MT6753/MT6752 variants)

* HTC: HTC One M9+, HTC One E9+ (Helio X10 MT6795)

* Gionee: Gionee Elife S7, Gionee Elife E8

- Common Motherboard Fault Symptoms & Diagnosis:

* Dead Handset (0.00A or Stuck at 0.02A - 0.05A):

- Handset does not power on. DC power supply shows zero current on power button press, or freezes at low current due to missing VCORE or open PWRKEY logic.

* Primary / Secondary Line Short Circuit:

- Complete short circuit on the battery line (VBAT) or primary system rail (VSYS) caused by punctured internal MOSFETs inside the buck regulator stages.

* Bootloop / Freezing on Brand Logo:

- Phone attempts to boot, displays the brand logo, and restarts immediately due to voltage drop across the VCORE inductors when all 8 CPU cores activate.

* Excessive Overheating on Standby:

- The IC area warms up noticeably even when the phone is turned off or idle, indicating internal leakage across one of the LDO outputs.
