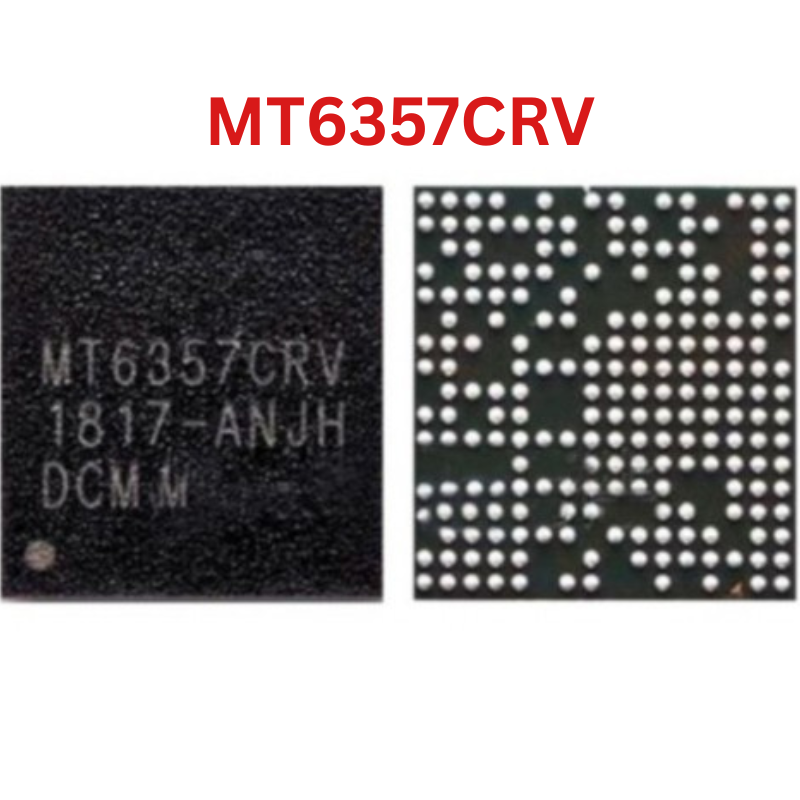

MT6357CRV IC

Product Details
Product Details:

- Part Number: MT6357CRV (Marking: MT6357CRV)

- Sibling Variants: MT6357MRV, MT6357V

- Manufacturer: MediaTek Inc. (MTK)

- Companion Processor Platforms: MediaTek Helio A22 (MT6761), Helio P22 (MT6762), Helio G25 / G35 (MT6765), MT6739

- Function: Primary System Power Management IC (Master PMIC) with Integrated Audio Subsystem

- Internal Architecture & Subsystems:

* Multi-Phase Synchronous Buck Regulators (VCORE, VPROC, VGPU, VMODEM, VDRAM / LPDDR3 & LPDDR4X, VSYS)

* High-PSRR Low-Dropout Linear Regulators (LDOs dedicated to eMMC storage, Cameras, Fingerprint sensor, SIM, Wi-Fi/BT)

* Integrated Audio Codec (Stereo DAC, Headphone Amplifier, Loudspeaker Driver, Mic Preamp)

* System Reset Generator, Power-On Sequencing State Machine, and 32.768 kHz RTC Crystal Driver

* Baseband SPI Control Interface for Power State Communication

- Package Type: VFBGA-209 (209-ball Fine-Pitch Ball Grid Array, 7.0mm x 6.6mm)

- Stencil Compatibility: Amaoe MP1 / Universal MediaTek PMIC BGA Stencil (0.12mm)

- Recommended Solder Paste: 183°C Leaded Solder Paste

Usage:

- Central Power Regulation: Takes battery / system bus voltage (VSYS / VBAT) and generates all regulated buck voltages required to bring the CPU and RAM out of reset.

- Target Devices & Compatible Models:

* Xiaomi / Redmi: Redmi 6A, Redmi 6, Redmi 9A (CRV batches)

* Oppo / Realme: Oppo A1k (CPH1923), Oppo A5s (CPH1909), Oppo A12 (CPH2083), Oppo A15, Realme C2 (RMX1941)

* Samsung: Galaxy A10s (SM-A107F / A107M)

* Huawei / Honor: Honor 8A (JAT-LX1), Honor 7S, Huawei Y5 Prime 2018 (DRA-LX2), Huawei Y6 Prime 2019

* Tecno / Infinix: Tecno Spark 4, Spark 5, Infinix Hot 8 (X650), Infinix Smart 4

* Nokia: Nokia 2.2, Nokia 3.1 Plus

- Variant Advisory (CRV vs MRV):

* Both chips share the identical 209-pin BGA footprint, but their internal OTP power sequencing configurations differ slightly.

* For boards originally using MT6357CRV (like Redmi 6A, Oppo A1k, Oppo A5s, Samsung A10s), installing an exact MT6357CRV is strongly recommended to prevent charging issues or bootloops.

- Common Fault Symptoms & Motherboard Diagnostics:

* Completely Dead Phone (0.00A or Static 0.01A–0.02A Hang):

- Pressing power button draws 0.00A on DC power supply (open PWRKEY or missing 32.768 kHz clock) or stays frozen at 0.02A (shorted secondary LDO rail).

* Dead After Flash (Common on Redmi 6A & Oppo A5s):

- Handset dies during flashing with SP Flash Tool or box tools when heavy CPU read/write operations overload degraded internal buck MOSFETs inside MT6357CRV.

* Auto MediaTek USB Port (BROM Mode):

- Screen stays unlit, but connecting via USB to PC immediately enumerates as "MediaTek USB Port (COMxx)" because the CPU starts in emergency Boot ROM mode while RAM or eMMC memory rails are absent.

* Bootloop / Stuck on Brand Logo:

- Phone reboots at the logo due to voltage drops across the VCORE / VPROC buck inductors during CPU clock acceleration.

* Total Audio Loss:

- Speaker, earpiece, or microphone remains mute even after replacing physical components, caused by a damaged analog audio codec stage inside MT6357CRV.
