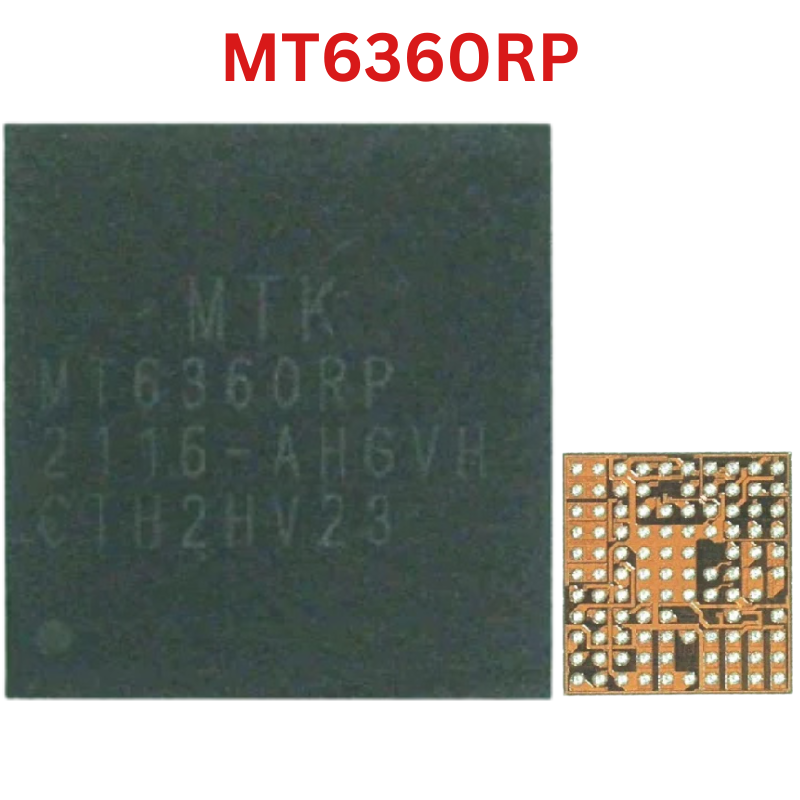

MT6360RP IC

Product Details
Product Details:

- Part Number: MT6360RP (Compatible Family Series: MT6360P, MT6360UP, MT6360PP, MT6360MP)

- Manufacturer: MediaTek Inc. (MTK)

- Function: Multi-Function Sub-PMIC (Fast Switching Charger, Type-C CC Controller, Display Bias & Flash Driver)

- Companion SoC / PMIC Platforms:

* MediaTek Helio G80 / G85 (MT6769), Helio G90T / G95 (MT6785), Helio G96 (MT6781), Dimensity Series

* Works in tandem with primary master PMICs (MT6358W, MT6359)

- Integrated Hardware Subsystems:

* High-efficiency Switching Mode Li-ion / Li-Polymer Battery Charger (supports fast charging up to 3A+)

* USB Type-C Configuration Channel (CC) Logic with USB Power Delivery (PD) & USB-OTG Reverse Boost (5V@1.5A)

* Display Bias Supply Unit:

- Generates positive and negative voltage rails (+5V / -5V or AVDD / ELVDD / ELVSS) for LCD and AMOLED display panels

* Dual-Channel Constant-Current Flash LED Driver for camera strobe and flashlight

* Complete Hardware Protection: Input Overvoltage Protection (OVP up to 14V tolerance), Thermal Regulation, and Watchdog Timer

- Package Type: 103-ball WLCSP / BGA

- Stencil Compatibility: Amaoe MT6360 Dedicated BGA Stencil / Amaoe SAM10 / Universal Sub-PMIC Stencil (0.12mm)

- Recommended Solder Paste: 183°C Leaded Solder Paste

Usage:

- Circuit Board Function:

* Acts as the primary gateway for USB power input (VBUS), managing battery charging negotiation, while supplying power rails directly to the display glass and camera flash.

- Compatible Smartphone Brands & Popular Models:

* Samsung: Galaxy A31 (SM-A315F), Galaxy A32 4G (SM-A325F), Galaxy A22 4G (SM-A225F), Galaxy A13 (SM-A137F), Galaxy A14 (SM-A145F), Galaxy A34 5G, Galaxy M22, Galaxy M32

* Xiaomi / Redmi / POCO: Redmi Note 8 Pro (MT6785), Redmi 9 (Lancelot), Redmi Note 9 (Merlin), Redmi Note 11 Pro 4G, POCO X4 Pro 5G / M2 Pro

* Oppo / Realme: Oppo Reno 2, Reno 3, Reno 7 5G, Reno 10 5G; Realme 9 Pro Plus 5G, Realme 11 Pro

* Vivo: Vivo Y20, Y30, V23, V25

* Infinix / Tecno: Infinix Note 8, Note 10, Note 11, Zero 8, Zero 5G; Tecno Camon 16, Camon 17, Pova 5G

- Common Motherboard Fault Symptoms & Repair Diagnostics:

* Fake Charging / Slow Charging / No Current Draw:

- Phone displays the charging lightning bolt on screen, but draws 0.00A or less than 0.40A on a USB ammeter, and battery percentage fails to increase. Caused by damaged internal switching buck FETs inside MT6360RP.

* Complete Short Circuit / Dead Handset:

- High-side VBUS-to-VSYS MOSFET breakdown causes an auto-short on the battery connector or charger line. Thermal camera shows a direct hot spot over MT6360RP.

* Blank Screen / No Display with Normal Vibration & Ringing:

- Phone turns on, receives calls and vibrates, but the screen remains completely black with good LCD/AMOLED screens. Traced to missing +5V / -5V or display bias output rails from MT6360RP.

* Flashlight / Torch Failure:

- Rear camera flash and flashlight toggle are disabled or fail to illuminate due to a blown internal LED driver channel.
