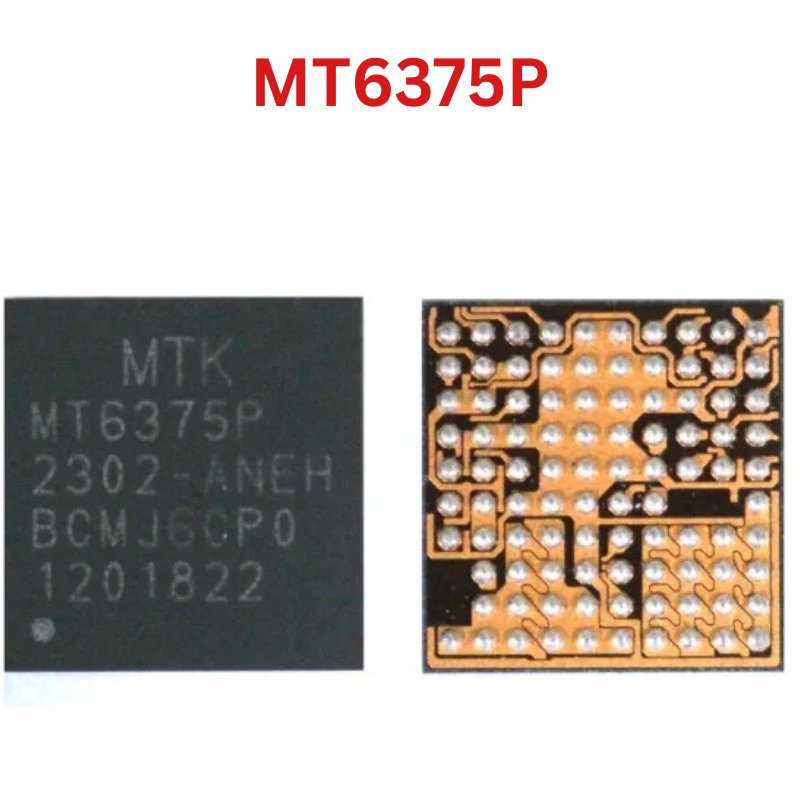

MT6375P IC

Product Details
Product Details:

- Part Number: MT6375P (Markings: MT6375P, MT6375P/A, MT6375SP)

- Manufacturer: MediaTek Inc. (MTK)

- Function: Multi-Function Sub-PMIC (Fast Switching Battery Charger, USB-PD Supervisor, System Power Distributor)

- Target SoC Platforms:

* MediaTek Dimensity 5G Series (Dimensity 6100+, Dimensity 7200, Dimensity 7300, Dimensity 8100, Dimensity 8300-Ultra)

* Works in parallel with master PMIC units to handle peripheral and charging loads

- Integrated Hardware Subsystems:

* High-efficiency switching buck battery charger managing fast-charging protocols

* Type-C Configuration Channel (CC) detection logic and USB Power Delivery (PD) handshake

* Dual-channel high-current Camera Flash / Torch LED driver

* Secondary synchronous buck converters and low-dropout regulators (LDOs) for auxiliary system rails

* Hardware protection suite: Input Overvoltage Protection (OVP), Overcurrent Protection (OCP), and Thermal Shutdown

- Package Type: 96-pin WLP (Wafer-Level Package) / BGA

- Stencil Compatibility: Amaoe MT Series / Universal MediaTek 5G Sub-PMIC Stencil (0.12mm)

- Recommended Solder Paste: 183°C Leaded Solder Paste

Usage:

- Circuit Function:

* Serves as the high-current power gatekeeper from the USB Type-C connector, regulating fast battery charging while delivering conditioned auxiliary power rails to peripherals and display sub-blocks.

- Compatible Smartphone Models:

* Xiaomi / POCO: Xiaomi Mi 12T, POCO X6 Pro 5G, Redmi Note 12 / 13 series (MediaTek 5G models)

* Samsung: Galaxy A15 5G (SM-A156B / SM-A156U - Dimensity 6100+)

* Vivo / iQOO: Vivo V30 series, Vivo V27 / V29 series, iQOO Z7 / Z9

* Oppo / Realme: Oppo Reno 12 / Reno 12 Pro (Dimensity 7300), Realme 11 / 12 series

* Infinix / Tecno: Infinix Note 30 VIP, Zero 30 5G, Tecno Camon 20 Pro 5G, Camon 30 series

- Common Motherboard Fault Symptoms & Diagnosis:

* "No Charging" / Zero Amperage Draw (0.00A on USB Tester):

- When plugged into a charger, the device fails to negotiate charging or draws zero current, typically caused by blown input protection MOSFETs inside MT6375P.

* Fake Charging:

- The phone displays the charging lightning bolt icon on the display, but current remains trapped at ~0.10A - 0.20A and the battery level never increases or actually drains.

* Dead Phone / Auto Short on DC Power Supply:

- Internal breakdown of the high-side switching FET directly shorts the VBUS/VSYS line to ground, causing high current pull on the DC power supply immediately upon connection.

* Severe Localized Heating during Fast Charging:

- Handset triggers temperature warnings or stops charging after 2-3 minutes due to excessive thermal degradation within the MT6375P switching circuit.
